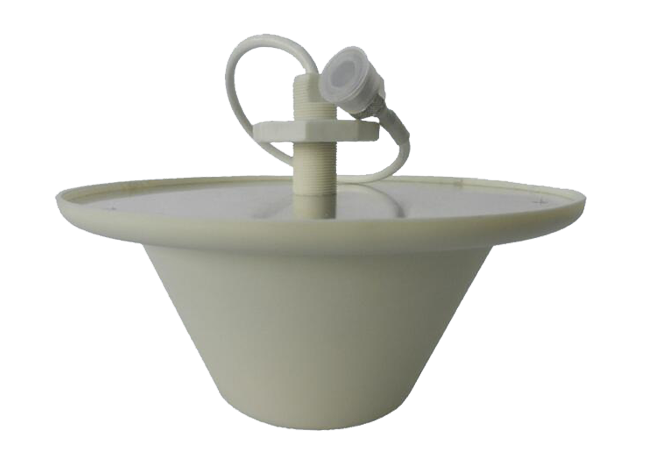

Supporting 698~2700MHz With PIM value -140dBc@2x33dBm Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTIOCASO69827B |
|
Frequency Range |
698-960MHz/1710-2700MHz |
|
Gain |
3dBi |
|
Horizontal Beamwidth |
360º |
|
Vertical Beamwidth |
85±15º/40±8º |
|
Ovality |
≤±2dB |
|
VSWR |
≦1.5 |
|
Intermodulation IM3@2X33dBm |
≤-140dBc |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
¢185x85mm |
|
Weight |
0.25Kg |
|
Operational humidity |
< 95％ |
|
Reflector material |
Aluminum |
|
Radome color |
White |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
