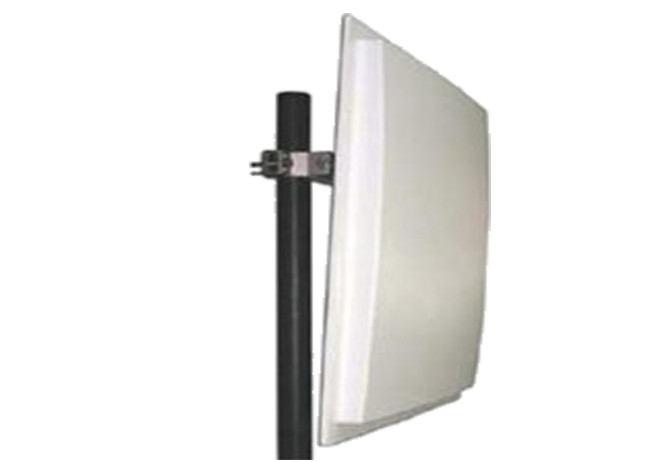

*Model No.: MNTRFID901 *Supporting 902~928MHz *With high gain of 12dBi *having good performance with your reader *With UV-resistant radome working with all weather conditions
|
Electrical Specification |
|
|
Model No. |
MNTRFID901 |
|
Frequency Range |
902-928MHz |
|
Gain |
12dBi |
|
Horizontal Beamwidth |
38° |
|
Vertical Beamwidth |
40° |
|
F/B Ratio |
≥25dB |
|
VSWR |
≤1.35 |
|
Impedance |
50Ω |
|
Polarization |
Circular |
|
Max. Power |
50W |
|
Connector |
N-Female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
450*450*40mm |
|
Weight |
2.5Kg |
|
Rated Wind Velocity |
60m/s |
|
Reflector material |
Aluminum |
|
Radome color |
White |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
|
Suitable pole diameter |
Φ40-Φ80mm |
