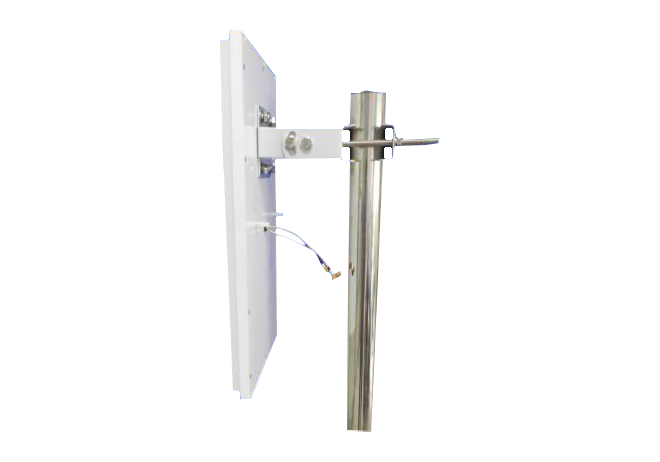

*Model No.:MNTRFID901010 *Supporting 902~928MHz *With gain of 10dBi *Radome with UV-resistant working with all weather conditions *Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTRFID901010 |
|
Frequency Range |
902-928MHz |
|
Gain |
10dBi |
|
Horizontal Beamwidth |
65±5° |
|
Vertical Beamwidth |
35° |
|
F/B Ratio |
≥23dB |
|
VSWR |
≤1.3 |
|
Impedance |
50Ω |
|
Polarization |
Linear |
|
Max. Power |
100W |
|
Connector |
SMA-Female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
420*240*30mm |
|
Weight |
0.8Kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Radome color |
White |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
|
Suitable pole diameter |
Φ30-Φ50mm |
