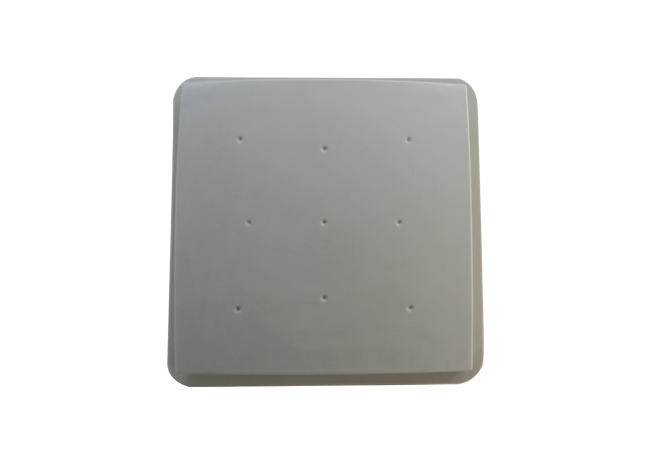

*Model No.:MNTRFID80108 *Supporting RFID frequency range 866MHz *With gain of 8dBi *With UV-resistant radome working with all weather conditions *Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTRFID80108 |
|
Frequency Range |
866±15MHz |
|
Gain |
8dBi |
|
Horizontal Beamwidth |
65° |
|
Vertical Beamwidth |
65° |
|
F/B Ratio |
≥20dB |
|
VSWR |
≤1.3 |
|
Impedance |
50Ω |
|
Polarization |
Circular |
|
Max. Power |
50W |
|
Connector |
SMA-Female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
260*260*30mm |
|
Weight |
0.8Kg |
|
Rated Wind Velocity |
39.6m/s |
|
Reflector material |
Aluminum |
|
Radome color |
White |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
|
Suitable pole diameter |
Φ30-Φ50mm |
