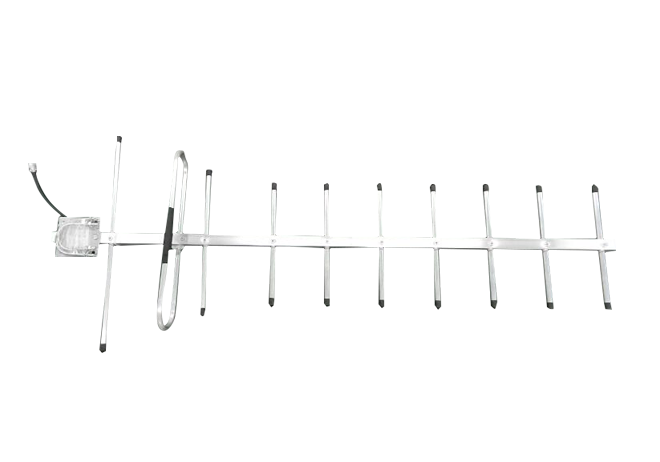

*Model No.: MNTOYATETRA01 *Supporting Tetra band frequency range 350~450MHz *With high gain of 9dBi *With strong radiating elements *Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTOYATETRA01 |
|
Frequency Range |
350-450MHz |
|
Gain |
9dBi |
|
Horizontal Beamwidth |
54±5º |
|
Vertical Beamwidth |
48±3º |
|
F/B Ratio |
≥16dB |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
950*280*70mm |
|
Weight |
0.65Kg |
|
Rated Wind Velocity |
69m/s |
|
Operational humidity |
< 95％ |
|
Reflector material |
Aluminum |
|
Suitable pole diameter |
￠40～￠55mm |
|
Operating temperature |
- 40～55℃ |
