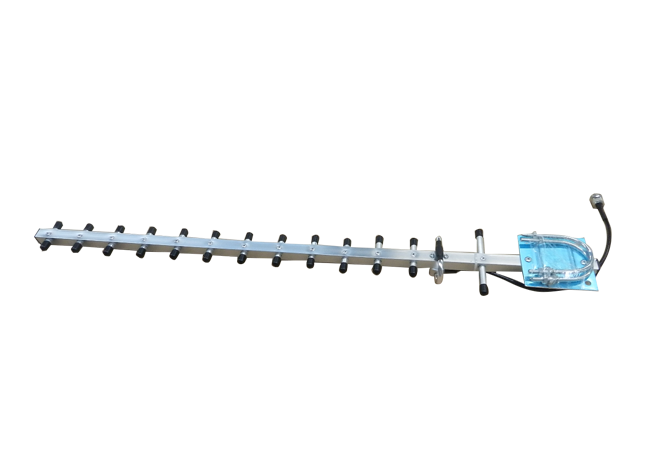

*Model No.: MNTOYADCS01 *Supporting 1800MHz specially *With high gain of 18dBi * Suitable for the area with poor outside signal *Strong radiating elements
|
Electrical Specification |
|
|
Model No. |
MNTOYADCS01 |
|
Frequency Range |
1710-1880MHz |
|
Gain |
18dBi |
|
Horizontal Beamwidth |
35±5º |
|
Vertical Beamwidth |
25±3º |
|
F/B Ratio |
≥20dB |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
100W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
130x20x7.5cm |
|
Weight |
1.4Kg |
|
Rated Wind Velocity |
69m/s |
|
Operational humidity |
< 95％ |
|
Reflector material |
Aluminum |
|
Suitable pole diameter |
￠40～￠55mm |
|
Operating temperature |
- 40～55℃ |
