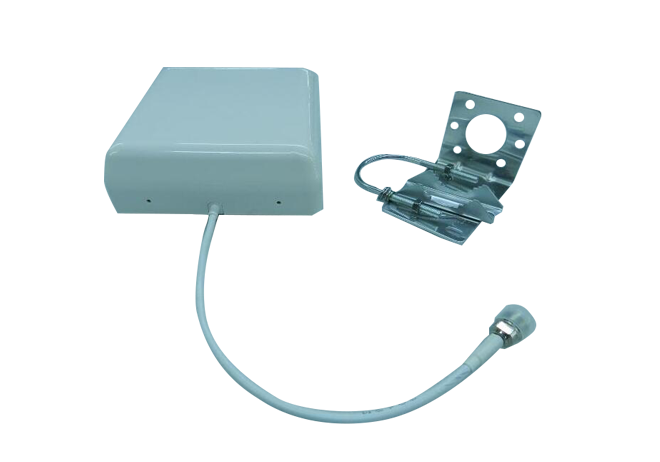

*Model No.:MNTOSPA01 *For signal booster system *With wide band supporting 2G/3G/4G together *Working with all weather conditions *Easy installation
|
Electrical Specification |
||
|
Model No. |
MNTOSPA01 |
|
|
Frequency Range |
698-960MHz |
1710-2700MHz |
|
Gain |
7±1dBi |
8±1dBi |
|
Horizontal Beamwidth |
90±15/75±15° |
|
|
Vertical Beamwidth |
65/55° |
|
|
F/B Ratio |
≧8dB |
|
|
VSWR |
≦1.8 |
≦1.5 |
|
Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Max. Power |
100W |
|
|
Connector |
N-Female |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Dimension |
207*177*45mm |
|
|
Weight |
0.42Kg |
|
|
Rated Wind Velocity |
36.9m/s |
|
|
Reflector material |
Aluminum |
|
|
Radome material |
ABS |
|
|
Operating temperature |
- 40～55℃ |
|
|
Suitable pole diameter |
Φ40-Φ75mm |
|
