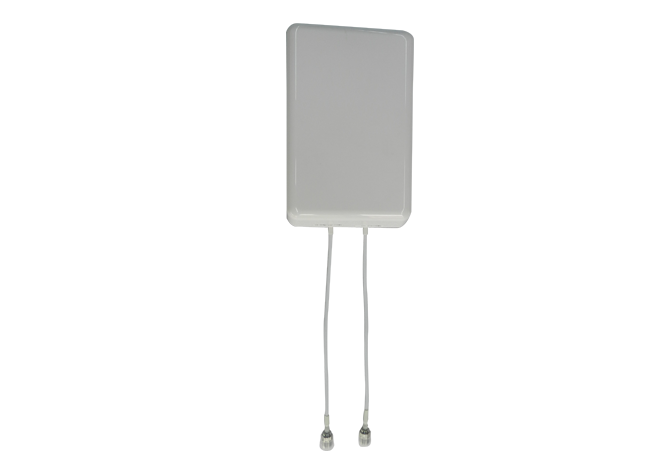

Both of two ports supporting 698~2700MHz Dual polarization High PIM value -150dBc@2x43dBm Good durable performance
|
Electrical Specification |
||
|
Model No. |
MNTIPAMOB69827A |
|
|
Frequency Range |
698~960MHz/1710~2700MHz |
698~960MHz/1710~2700MHz |
|
Polarization |
+45° |
-45° |
|
Gain |
6dBi |
8dBi |
|
Horizontal Beamwidth |
95±15º |
75±15º |
|
Vertical Beamwidth |
85º |
65º |
|
VSWR |
≤1.5 |
|
|
F/B ratio |
≥10≥15dB |
|
|
Intermodulation IM3@2X43dBm |
≤-150dBc |
|
|
Impedance |
50Ω |
|
|
Isolation |
≥25dB |
|
|
Max.Power |
50W |
|
|
Connector |
2*N-female |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specification |
||
|
Dimension |
320*210*72mm |
|
|
Weight |
1.1kg |
|
|
Reflector material |
Aluminum |
|
|
Operational Humidity |
< 95％ |
|
|
Radome Color |
White |
|
|
Radome material |
ABS |
|
|
Operating temperature |
40～55℃ |
|
