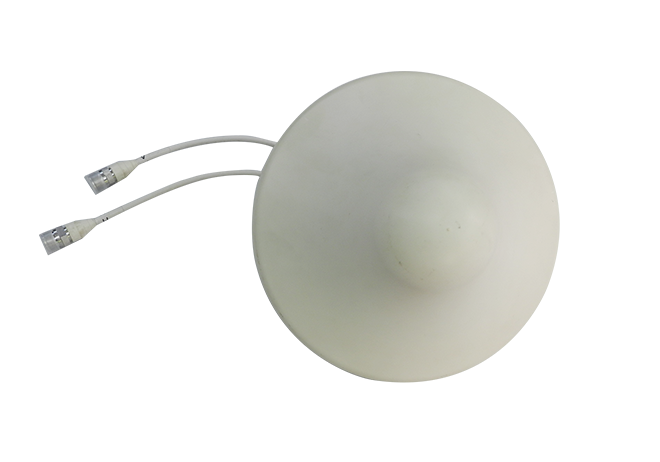

Supporting 698~2700MHz With dual polarization PIM value -140dBc@2x33dBm Good durable performance
|
Electrical Specification |
||
|
Model No. |
MNTIOCAMO69827B |
|
|
Frequency Range |
698~960MHz/1710~2700MHz |
1710-2700MHz |
|
Polarization |
Vertical |
Horizontal |
|
Gain |
1.5/4dBi |
4dBi |
|
Horizontal Beamwidth |
360º |
|
|
Vertical Beamwidth |
85/55º |
55/45º |
|
VSWR |
≤1.5 |
|
|
Ovality |
≤±2dB |
|
|
Intermodulation IM3@2X33dBm |
≤-140dBc |
|
|
Impedance |
50Ω |
|
|
Isolation |
≥22/25dB |
|
|
Max.Power |
50W |
|
|
Connector |
2*N-female |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specification |
||
|
Dimension |
¢200x130mm |
|
|
Weight |
0.7kg |
|
|
Rated Wind Velocity |
36.9m/s |
|
|
Reflector material |
Aluminum |
|
|
Operational Humidity |
< 95％ |
|
|
Radome Color |
White |
|
|
Radome material |
ABS |
|
|
Operating temperature |
40～55℃ |
|
