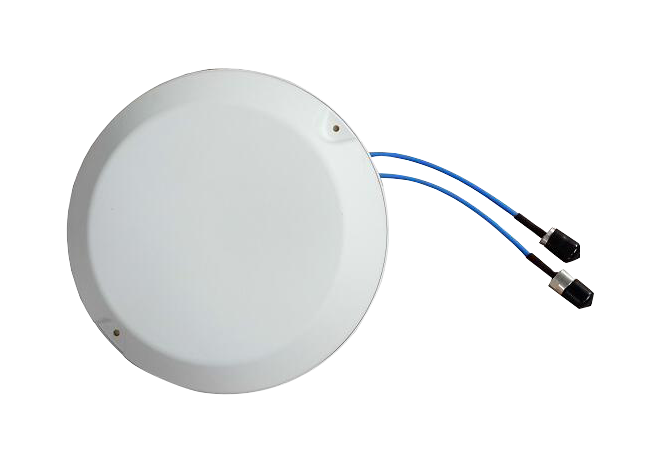

Both of two ports supporting 698~2700MHz Dual polarization High PIM value -150dBc@2x43dBm
|
Electrical Specification |
|||
|
Model No. |
MNTIOCAMOB69827A |
||
|
Frequency Range |
698~960MHz/1710~2700MHz |
698~960MHz/1710~2700MHz |
|
|
Polarization |
Vertical |
Horizontal |
|
|
Gain |
4dBi |
5dBi |
|
|
Horizontal Beamwidth |
360º |
||
|
Vertical Beamwidth |
90º |
60~65º |
|
|
VSWR |
≤1.8(698~806MHz),1.5(806~2700MHz) |
||
|
Ovality |
≤±2dB |
||
|
Intermodulation IM3@2X43dBm |
≤-150dBc |
||
|
Impedance |
50Ω |
||
|
Isolation |
≥21dB |
||
|
Max.Power |
50W |
||
|
Connector |
2*N-female |
||
|
Lightning Protection |
DC Ground |
||
|
Mechanical Specification |
|||
|
Dimension |
¢220x40mm |
||
|
Weight |
0.7kg |
||
|
Reflector material |
Aluminum |
||
|
Operational Humidity |
< 95％ |
||
|
Radome Color |
White |
||
|
Radome material |
ABS |
||
|
Operating temperature |
40～55℃ |
||
