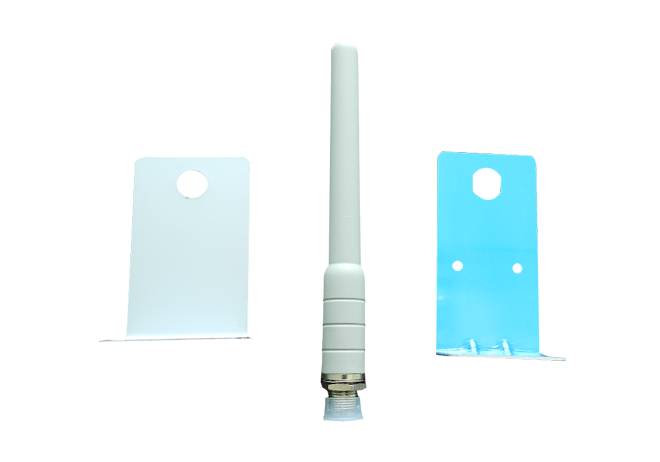

*Model No.: MNTOOA01 *Donor antenna for the mobile signal booster system *Available to receive the signal in 360 degree *Not easy to be noted *Easy installation
|
Electrical Specification |
|
|
Model No. |
MNTOOA01 |
|
Frequency Range |
800-960MHz/1710-2700MHz |
|
Gain |
3dBi |
|
Horizontal Beamwidth |
360° |
|
Vertical Beamwidth |
20° |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
N-Female(Or customized) |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
185x￠20mm |
|
Weight |
50g |
|
Radiating material |
Copper |
|
Radome color |
Grey |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
