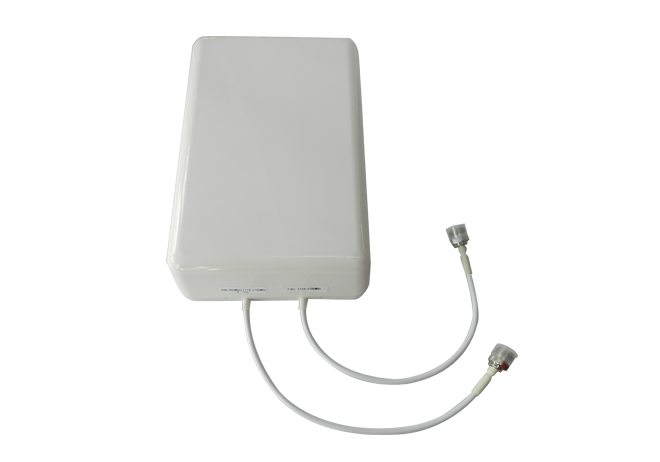

Supporting 698~2700MHz With high gain of 7.5dBi PIM value 140dBc@2x33dBm Good durable performance
|
Electrical Specification |
||
|
Model |
MNTIPA69827B |
|
|
Frequency Range |
698-960MHz |
1880-2700MHz |
|
Polarization |
Vertical |
±45º |
|
Gain |
6.8dBi |
7.5dBi |
|
Horizontal Beamwidth |
80º |
|
|
Vertical Beamwidth |
60º |
65º |
|
VSWR |
≤1.8 |
|
|
F/B Ratio |
≥20dB |
|
|
Intermodulation IM3@2X33dBm |
≤-140dBc |
|
|
Impedance |
50 Ω |
|
|
Isolation |
≥22dB |
|
|
Max.Power |
100W |
|
|
Connector |
N-female |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specification |
||
|
Dimension |
260*170*56mm |
|
|
Weight |
0.7kg |
|
|
Rated Wind Velocity |
36.9m/s |
|
|
Reflector material |
Aluminum |
|
|
Operational Humidity |
< 95％ |
|
|
Radome Color |
White |
|
|
Radome material |
ABS |
|
|
Operating temperature |
40～55℃ |
|
