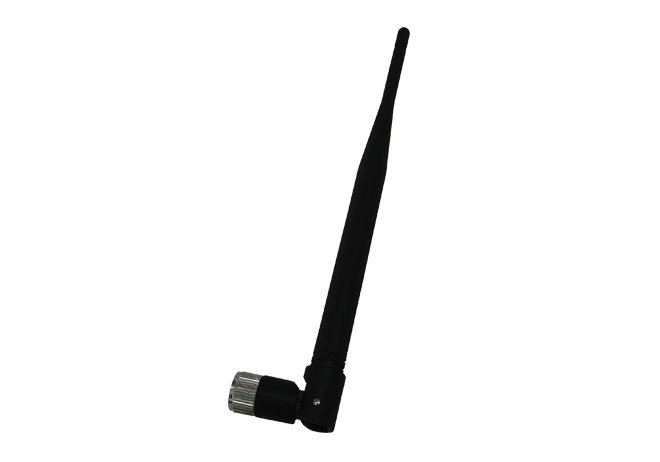

*Model No.:MNTWHA01 *For mobile signal booster system *Supporting wide band of 2G/3G/4G together *Easy installation *With the angle of 90 degree
|
Electrical Specification |
|
|
Model No. |
MNTWHA01 |
|
Frequency Range |
800-960MHz/1710-2700MHz |
|
Gain |
3dBi |
|
Horizontal Beamwidth |
360° |
|
Vertical Beamwidth |
20° |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
N-Female(Or customized) |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
210x21.5x14mm |
|
Weight |
48g |
|
Radiating material |
Copper |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
