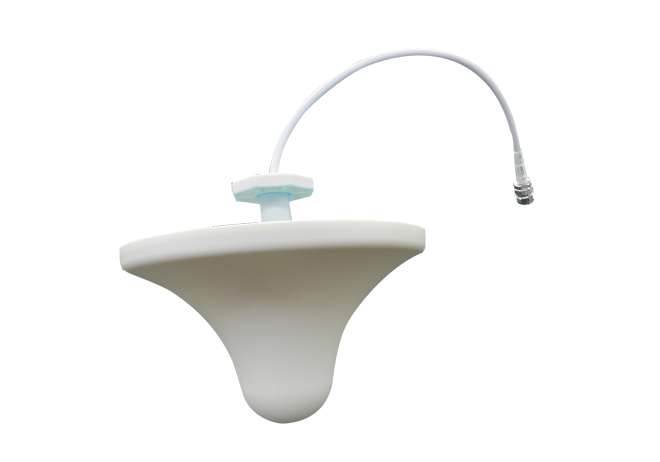

*Model No.: MNTOCA01 *Indoor omni antenna for signal booster system *Supporting wide band of 2G/3G/4G together *Good durable performance *Suitable for covering a round place
|
Electrical Specification |
|
|
Model No. |
MNTOCA01 |
|
Frequency Range |
806-960MHz/1710-2700MHz |
|
Gain |
3dBi |
|
Horizontal Beamwidth |
360º |
|
Vertical Beamwidth |
85º±15º/40º±8º |
|
Antenna pattern roundness |
≤±2 |
|
VSWR |
≦1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
¢168x98mm |
|
Weight |
0.3Kg |
|
Operational humidity |
< 95％ |
|
Reflector material |
Aluminum |
|
Radome color |
White |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
