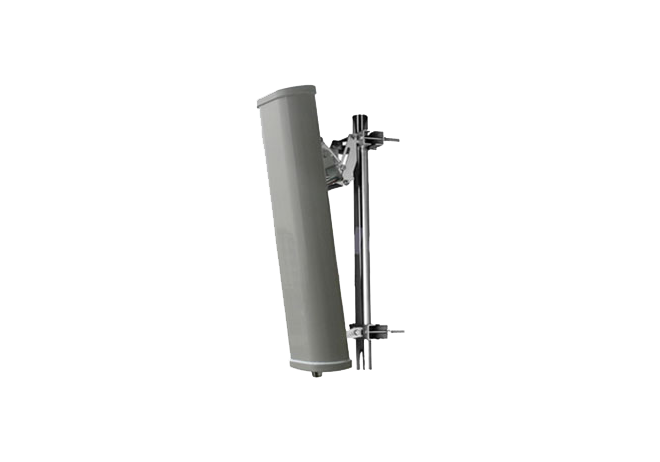

12dBi gain Dual polarization of ±45º Working with all weather conditions Good durable performance
|
Electrical Specifications |
||
|
Model |
MNTBOPAD82425G1201 |
|
|
Frequency Range |
824-960MHz |
1710-2500MHz |
|
Gain |
12±0.5dBi |
12±1dBi |
|
Horizontal Beamwidth |
65±5º |
|
|
Vertical Beamwidth |
30±3º |
|
|
F/B Ratio |
≥25dB |
|
|
VSWR |
≤1.5 |
|
|
Isolation |
≥28dB |
|
|
Impedance |
50 Ω |
|
|
Polarization |
±45º |
|
|
Max.Power |
100W |
|
|
Connector |
2*N-female |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Dimension |
750x275x75 mm |
|
|
Weight |
4.2kg |
|
|
Rated Wind Velocity |
36.9m/s |
|
|
Reflector material |
Aluminum |
|
|
Operational Humidity |
< 95％ |
|
|
Radome Color |
Grey white |
|
|
Radome material |
PVC |
|
|
Operating temperature |
-40～55 ℃ |
|
|
Suitable pole diameter |
￠40～￠80 |
|
