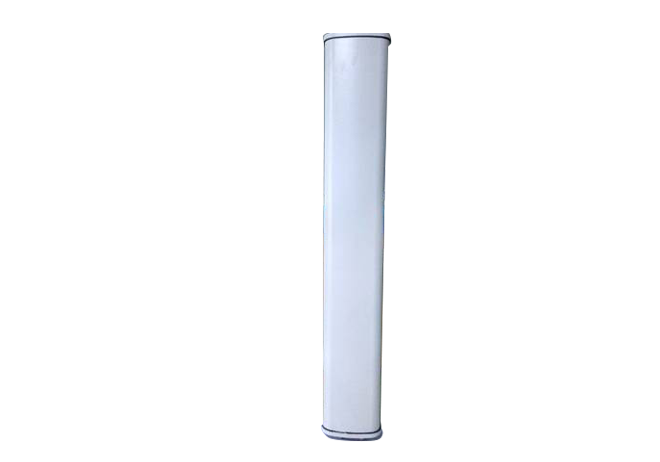

Supporting 4G 2600MHz With dual polarization Working with all weather conditions Good durable performance
|
Electrical Specification |
|
|
Model |
MNTOBPA2327G17 |
|
Frequency Range |
2300~2700MHz |
|
Gain |
17±1dBi |
|
Horizontal Beamwidth |
80±10º |
|
Vertical Beamwidth |
7±3º |
|
F/B Ratio |
≥25dB |
|
VSWR |
≤1.5 |
|
Isolation |
≥26dB |
|
Impedance |
50Ω |
|
Polarization |
±45º |
|
Max.Power |
100W |
|
Connector |
2*N-female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
1200x160x70mm |
|
Weight |
5.1kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Operational Humidity |
< 95％ |
|
Radome Color |
Grey white |
|
Radome material |
PVC |
|
Operating temperature |
－40～55 ℃ |
|
Suitable pole diameter |
￠40～￠80 |
