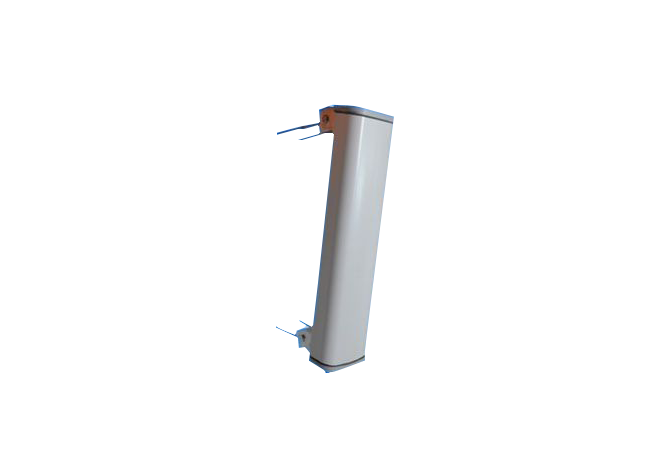

Supporting 1710~2500MHz With dual polarization Working with all weather conditions Good durable performance
|
Electrical Specification |
|
|
Model |
MNTBOPAD1725G1501 |
|
Frequency Range |
1710-2500MHz |
|
Gain |
2*15±0.5dBi |
|
Horizontal Beamwidth |
65±5 º |
|
Vertical Beamwidth |
15±3º |
|
F/B Ratio |
≥25dB |
|
Isolation |
≥28dB |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical+Horizontal/±45º |
|
Max.Power |
100W |
|
Connector |
2*N-female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
650x180x70mm |
|
Weight |
4.2kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Operational Humidity |
< 95％ |
|
Radome Color |
Grey white |
|
Radome material |
PVC |
|
Operating temperature |
-40～55 ℃ |
|
Suitable pole diameter |
￠40～￠80mm |
