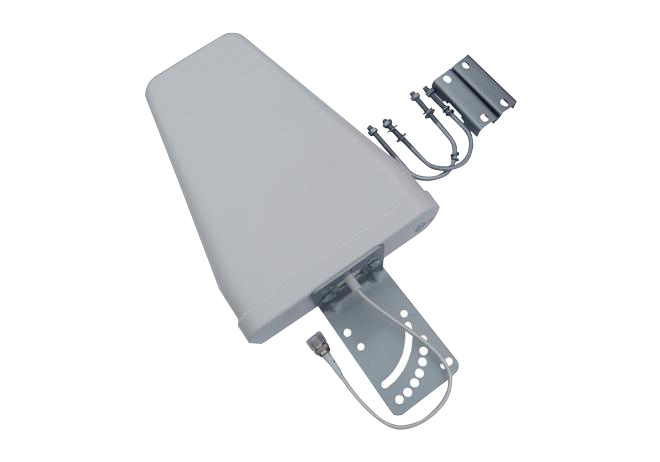

Supporting 806~960MHz/1710~2700MHz Good durable performance Working with all weather conditions
|
Electrical Specification |
|
|
Model No. |
MNTSLPDA01 |
|
Frequency range |
806-960/1710-2700MHz |
|
Gain |
9±0.5dBi |
|
Horizontal Beamwidth |
90±10º/75±10º |
|
Vertical Beamwidth |
75/60º |
|
F/B Ratio |
≥12/15dB |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max. Power |
50W |
|
Connector |
N-female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
300*210*65mm |
|
Weight |
0.57kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Operational Humidity |
< 95％ |
|
Radome Color |
White |
|
Radome material |
ABS |
|
Operating temperature |
40～55ºC |
|
Suitable pole diameter |
|
