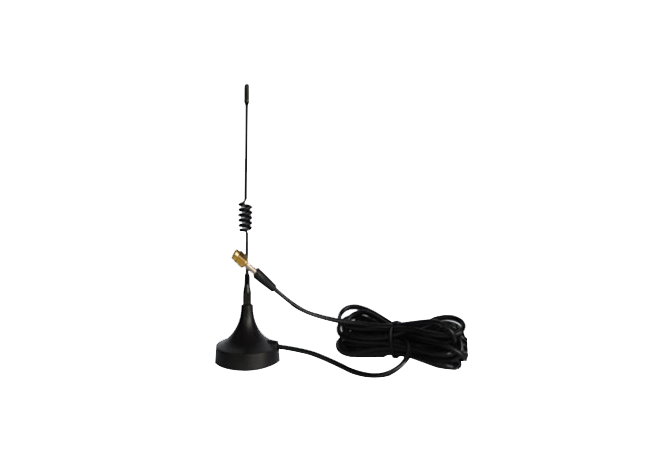

3dBi Magnetic antenna Supporting GSM850&900MHz With magnetic base Good durable performance
|
Electrical Specification |
|
|
Model |
MNTTAGSM901 |
|
Frequency Range |
806-960MHz |
|
Gain |
3±0.5dBi |
|
Horizontal Beamwidth |
360 º |
|
Vertical Beamwidth |
60±15º |
|
VSWR |
≤2.0 |
|
Impedance |
50 Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
SMA-male(with 3m cable) |
|
Mechanical Specification |
|
|
Dimension |
45*300mm |
|
Weight |
25g |
|
material |
Titanium Steel |
|
Radome Color |
Black |
|
Radome material |
ABS |
|
Operating temperature |
-40～55º |
