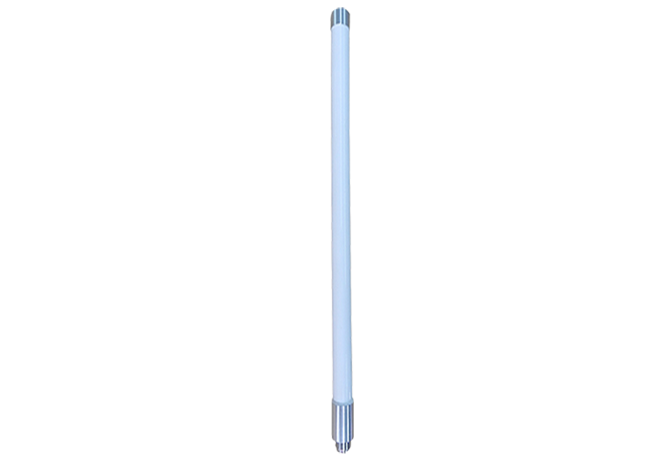

*Supporting 5GHz frequency range 5150~5850MHz *With horizontal beamwidth of 360 degree *Radome with UV-resistant working with all weather conditions *Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTOFA51001 |
|
Frequency Range |
5150~5850MHz |
|
Gain |
10dBi |
|
Horizontal Beamwidth |
360º |
|
Vertical Beamwidth |
12±3º |
|
Antenna pattern roundness |
≤±2 |
|
VSWR |
≤2 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
¢20x600mm |
|
Weight |
1Kg |
|
Rated Wind Velocity |
36.9m/s |
|
Operational humidity |
< 95％ |
|
Radome color |
Grey |
|
Operating temperature |
- 40～55℃ |
|
Electrical Specification |
|
|
Model No. |
MNTOFA51201 |
|
Frequency Range |
5150~5850MHz |
|
Gain |
12dBi |
|
Horizontal Beamwidth |
360º |
|
Vertical Beamwidth |
10±3º |
|
Antenna pattern roundness |
≤±2 |
|
VSWR |
≤2 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
¢20x800mm |
|
Weight |
1.2Kg |
|
Rated Wind Velocity |
36.9m/s |
|
Operational humidity |
< 95％ |
|
Radome color |
Grey |
|
Operating temperature |
- 40～55℃ |
