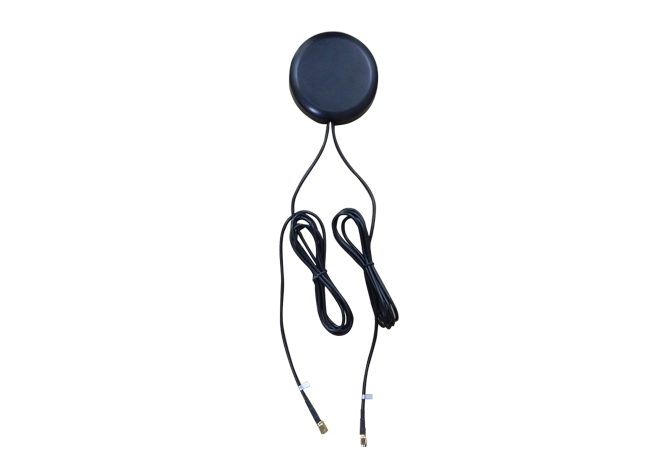

Supporting 880~960/1710~1990MHz&1575.42MHz With magnetic mounting Good durable performance
|
Electrical Specification |
|
|
Model |
MNTTACOMBO01 |
|
Frequency Range |
880~960/1710~1990MHz/1575.42MHz |
|
Gain |
3.6/5dBi |
|
LNA gain |
45dBi |
|
VSWR |
≤1.5≤1.4 |
|
Polarization |
Vertical/RHCP |
|
Power consumption |
2.7 to 5.5V DC/28mA |
|
Interference suppression |
20dB(f0±140MHz) |
|
Impedance |
50Ω |
|
Max.Power |
50W |
|
Connector |
SMA-Male(with 3m cable) |
|
Mechanical Specification |
|
|
Dimension |
¢38*13mm |
|
Weight |
0.025kg |
|
Radome Color |
Black |
|
Radome material |
ABS |
|
Storage temperature |
-40～90º |
|
Operating temperature |
-40～55º |
