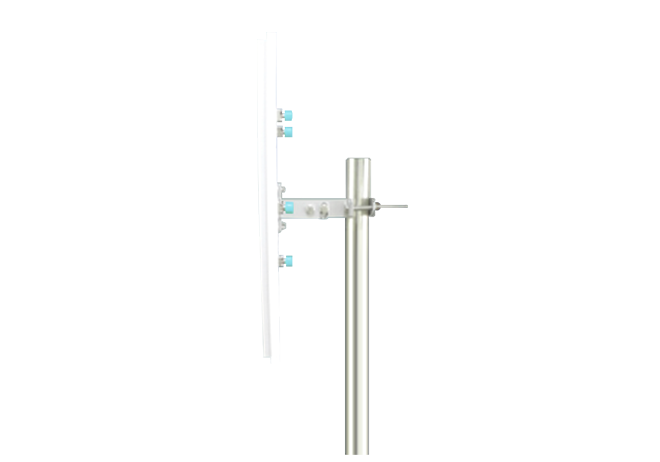

Dual band of 2.4G&5GHz outdoor panel antenna MIMO antenna model with 4 ports Good durable performance Working with all weather conditions
|
Electrical Specification |
|
|
Model |
MNTOPA2415M41 |
|
Frequency range |
2400-2500/5150~5850MHz |
|
Gain |
15±0.5dBi |
|
Horizontal Beamwidth |
40±5º |
|
Vertical Beamwidth |
30±3º |
|
F/B Ratio |
≥25dB |
|
Isolation |
≥25dB |
|
VSWR |
≤1.5/1.2 |
|
Impedance |
50Ω |
|
Polarization |
Vertical+Horizontal |
|
Max.Power |
100W |
|
Connector |
4xN-female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
420x240x30mm |
|
Weight |
2.4kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Operational Humidity |
< 95％ |
|
Radome Color |
White |
|
Radome material |
ABS |
|
Operating temperature |
40～55 º |
|
Suitable pole diameter |
￠40～￠55 |
